Description

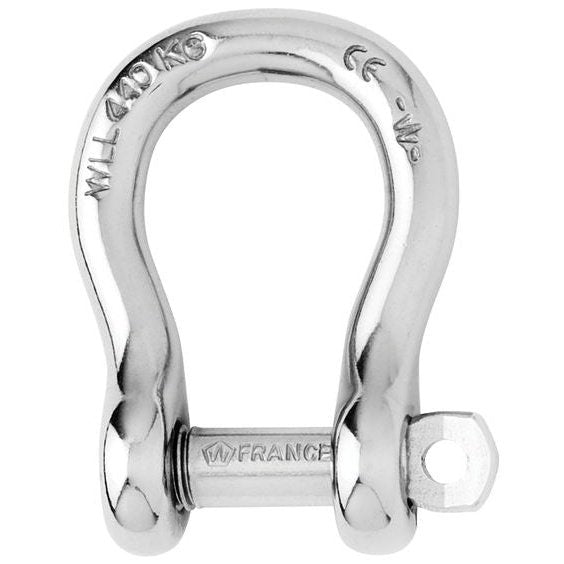

Enhance your rigging setup with the Wichard Captive Pin Bow Shackle, meticulously crafted from grade 316L stainless steel. The captive pin design ensures unparalleled safety, remaining connected to the body even when open. With the pin securely locked into indentations, there's no risk of loosening due to vibrations.

Key Features:

  • Captive pin design for enhanced safety and security
  • Grade 316L stainless steel construction for durability
  • Pin remains connected to the body at all times, minimizing the risk of loss
  • Single-handed operation for added safety
  • CE marking and batch number for quality assurance
  • Suitable for industrial applications (lifting, etc.)
  • Outstanding working and breaking loads for reliable performance

Applications:

  • Ideal for situations requiring ample room
  • Allows attachment of multiple lines or cables

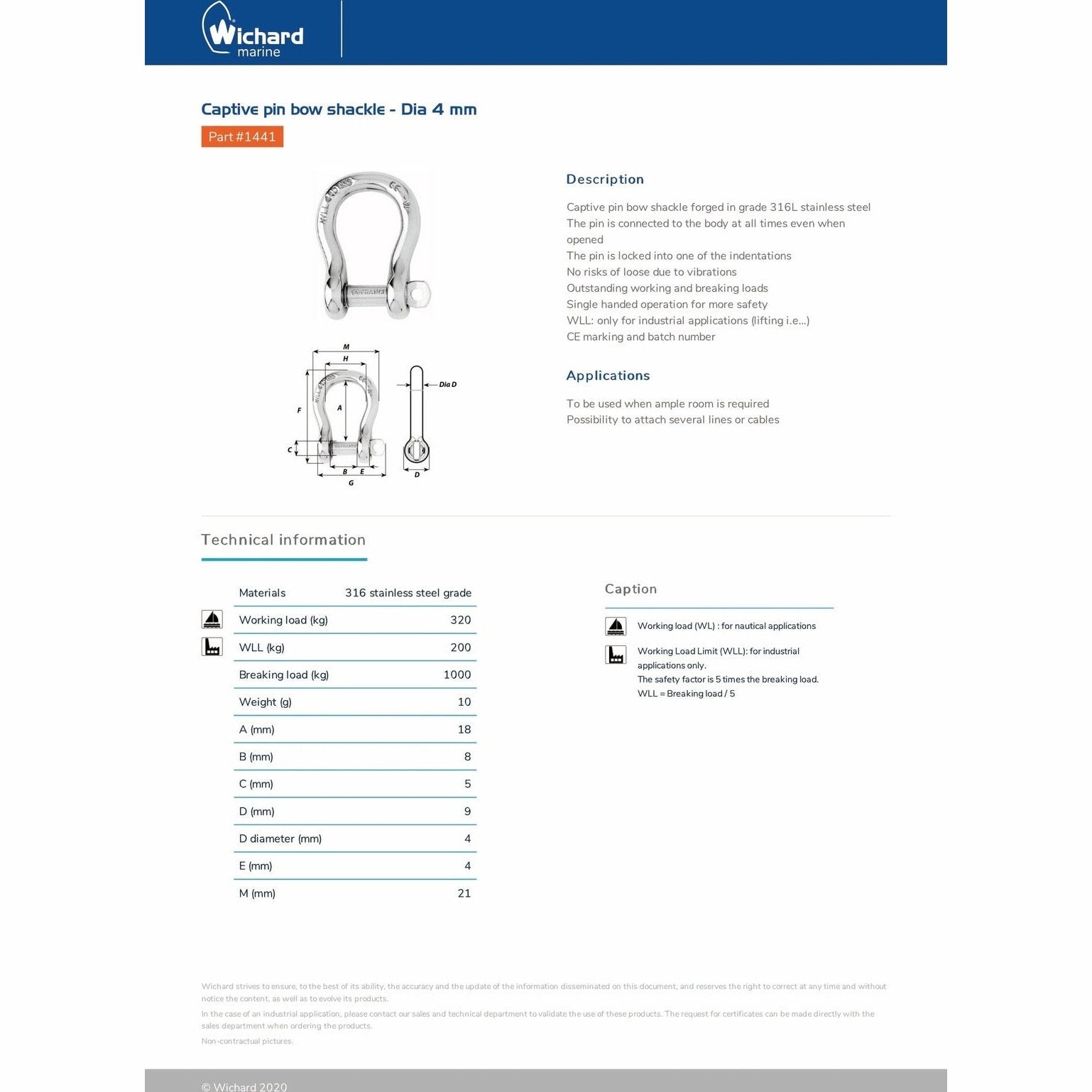

Specifications:

  • Working Load Limit (WLL) for industrial applications: 200 kg
  • Breaking Load: 1000 kg
  • Weight: 10 g

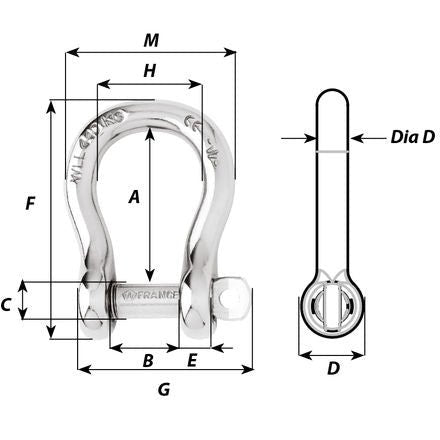

  • Dimensions (mm): A - 18, B - 8, C - 5, D - 9, D Diameter - 4, E - 4, M - 21

Technical Information:

  • Materials: 316 stainless steel grade
  • Safety Factor: 5 times the breaking load
  • WLL = Breaking load / 5

Upgrade your rigging with confidence using the Wichard Captive Pin Bow Shackle, designed for superior performance and safety in both nautical and industrial applications.
