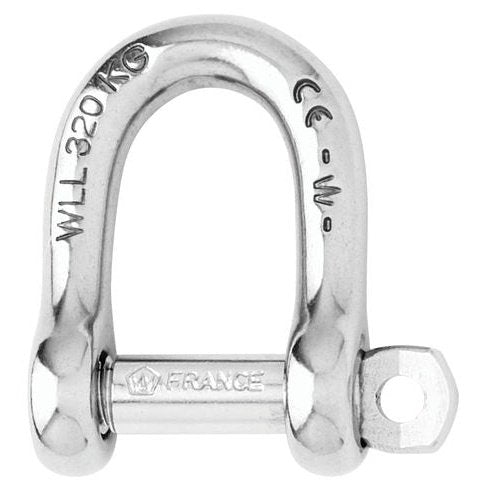

Wichard Self-locking D Shackle - Dia 6 mm #Wic-1203

Upgrade your rigging with the Wichard Self-locking D Shackle, forged from premium grade 316L stainless steel. Engineered with precision, this shackle ensures secure fastening in industrial and nautical applications.

Key Features:

• Self-locking Design: The pin securely locks into one of the indentations, eliminating the risk of loosening due to vibrations, providing a reliable connection.

• Impressive Load Capacity: With outstanding working and breaking loads, this shackle boasts a Working Load Limit (WLL) of 320 kg, making it ideal for heavy-duty lifting in industrial settings.

• CE Marking: This product meets European Union safety standards, assuring compliance with stringent quality and safety regulations.

Specifications:

• Material: 316 Stainless Steel Grade
• Working Load (kg): 600
• WLL (kg): 320
• Breaking Load (kg): 1600
• Weight (g): 22

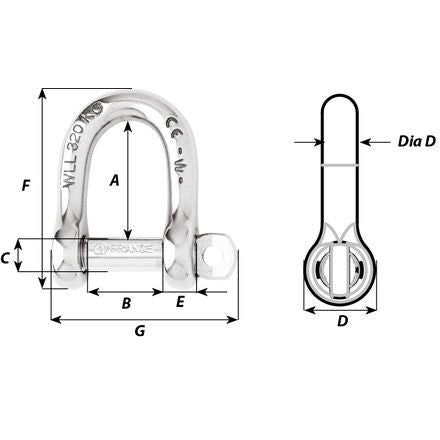

• Dimensions (mm):
  • A: 20
  • B: 12
  • C: 6
  • D: 12
  • D Diameter: 6
  • E: 5
  • F: 34
  • G: 31

Caption:

• Working Load (WL): for nautical applications
• Working Load Limit (WLL): for industrial applications only.
• The safety factor is 5 times the breaking load.
• WLL = Breaking load / 5

Upgrade your rigging with the Wichard Self-locking D Shackle. With its robust construction and high load capacities, it's the reliable choice for both industrial and nautical applications. Invest in safety, invest in Wichard.
