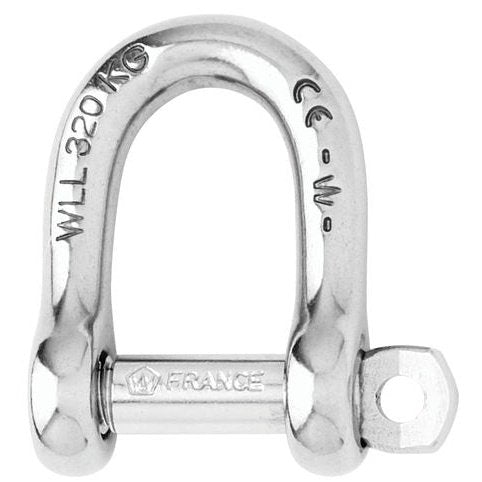

Wichard Self-Locking D Shackle - Dia 4 mm #1201

Elevate your rigging solutions with the Wichard Self-locking D Shackle, meticulously forged in high-grade 316L stainless steel. Engineered for precision, this shackle offers unrivaled security in your operations.

• Robust Construction: Crafted from top-tier 316 stainless steel, this self-locking D shackle is built to withstand the harshest conditions, ensuring longevity and reliability in every application.

• Pin Security: The pin is expertly designed to lock securely into one of the indentations, mitigating any risk of loosening due to vibrations, a crucial feature for demanding environments.

• Impressive Load Capacities: With outstanding working and breaking loads, this shackle guarantees the strength and resilience needed for critical tasks. The Working Load Limit (WLL) for industrial applications is an impressive 140 kg.

• CE Marking: This product bears the CE marking, attesting to its compliance with essential health, safety, and environmental protection standards.

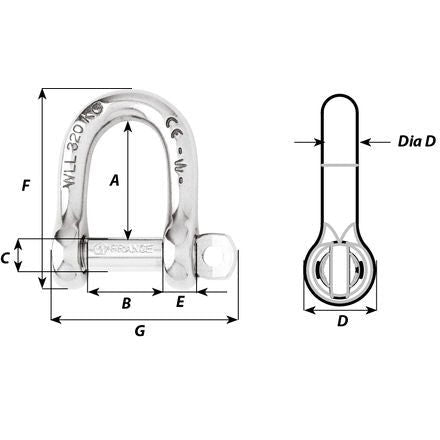

• Specifications:

  • Weight: 7 grams
  • A (mm): 13
  • B (mm): 8
  • C (mm): 4
  • D (mm): 8
  • D Diameter (mm): 4
  • E (mm): 3
  • F (mm): 23
  • G (mm): 20

Please note:

• Working Load (WL): Applicable for nautical applications.
• Working Load Limit (WLL): Intended for industrial applications only. The safety factor is 5 times the breaking load, with WLL calculated as Breaking Load / 5.

Equip your rigging setup with the assurance of Wichard's superior engineering and invest in the Self-locking D Shackle for unmatched performance and safety.
